Product line
Target Systems
A printed-frame quadrotor target for live-fire training. Send damaged drones and parts back to WetWorx for recycling.
Configurations
Line of sight. No camera and no video transmitter. Flown by an operator watching the aircraft, for crew drill and gunnery where the training event is the engagement rather than the flight. Fewer components in the air means less value lost on a hit.

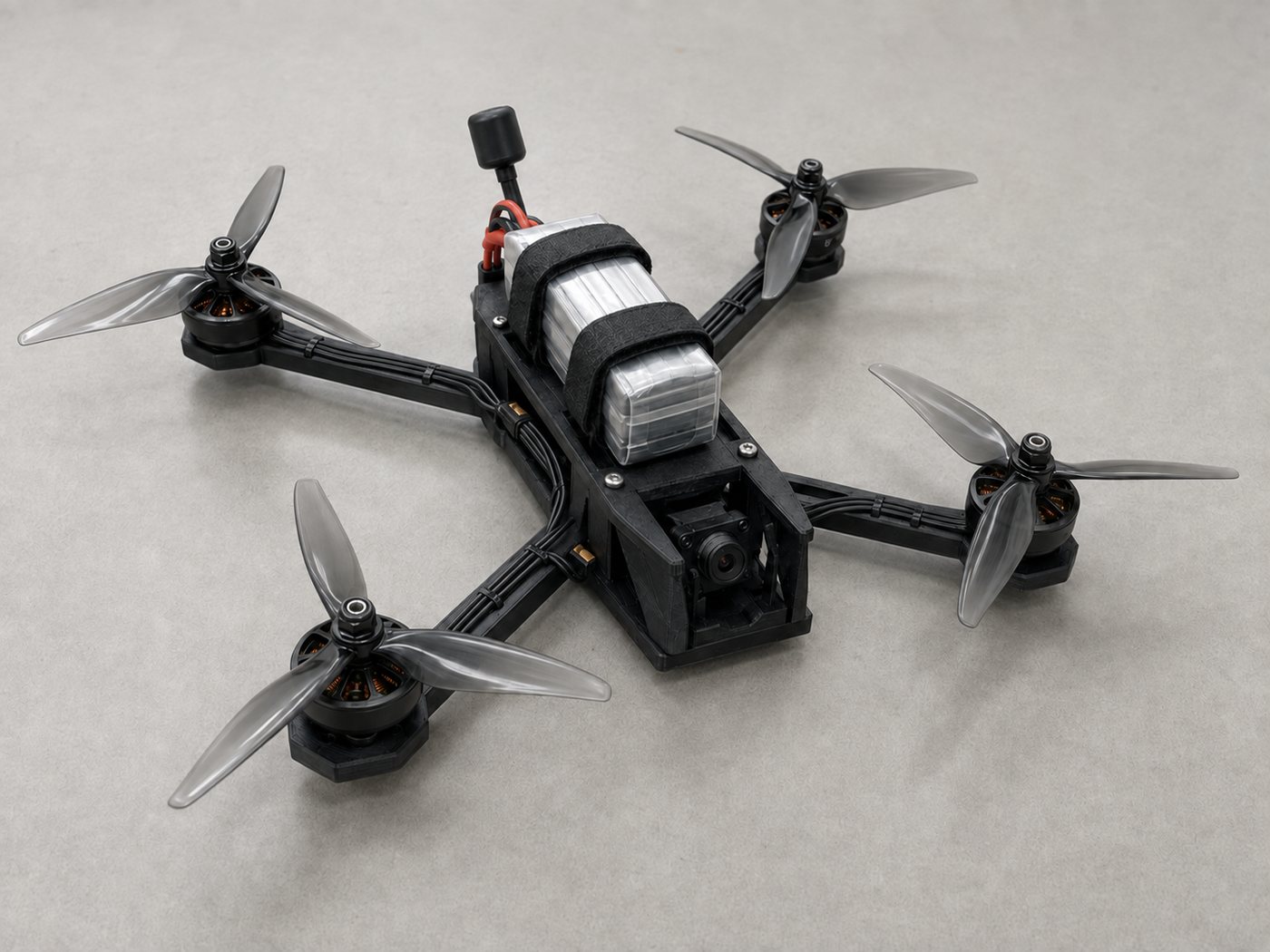

FPV. Camera and video transmitter fitted, flown from onboard video. This is the presentation that matches what crews are being trained to defeat, including approach profiles a line-of-sight operator cannot fly.
Both configurations share one airframe, one frame file and one electronics architecture, so a unit stocks one set of spares.

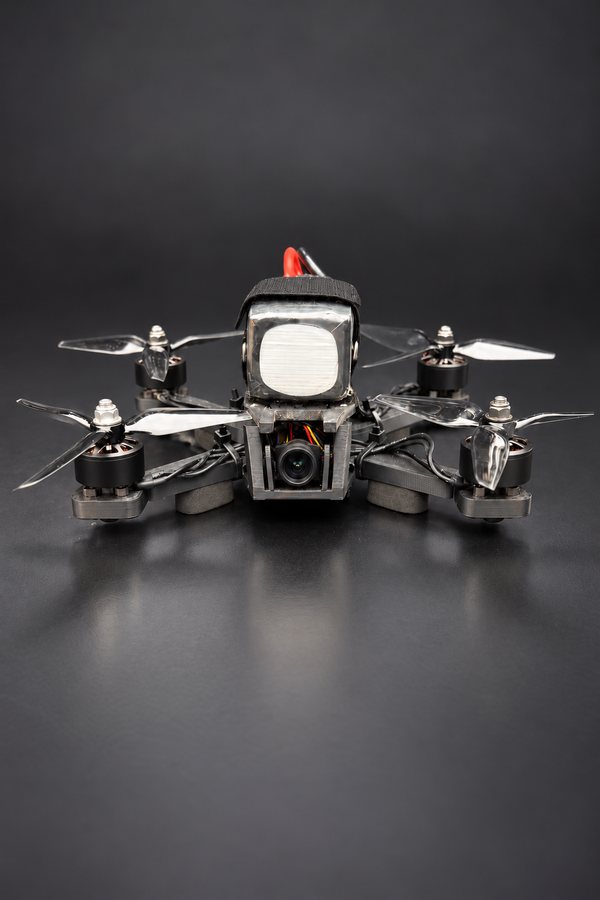

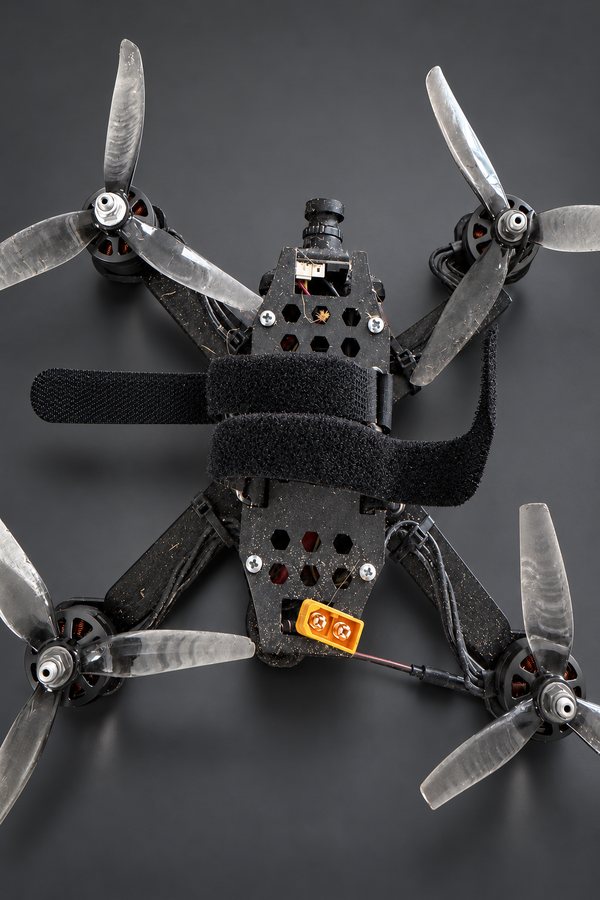

5-inch FPV Trainer
A 5-inch class FPV quadrotor for pilot proficiency, indoors and out. Built for training scenarios including positive identification (PID) before team entry and situational-awareness flights inside simulated target buildings, without putting personnel at risk. Top speed 100+ mph.
The team's UAS research and development has produced and flight-validated airframes spanning micro-class FPV through 10-inch quadrotor and fixed-wing configurations.
NDAA builds
NDAA-compliant targets
Four manually flown quadrotor targets, built with Blue UAS Framework and US-made components. Frames are PETG. The customer supplies controllers, goggles, batteries and chargers.
| Flight controller | Triumph Lucid H7 |
|---|---|
| ESC | Triumph Lucid 60A |
| Motors | Unusual Machines UM2807 |
| Receiver | Ewing BlueLRS |
| Firmware | Betaflight |

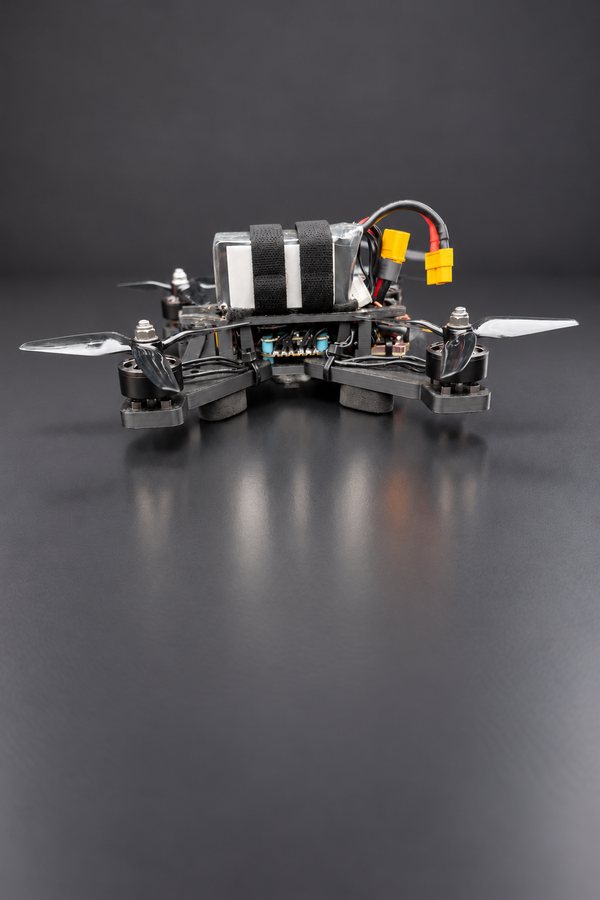

| Battery connector | XT60 |
FPV models add a Fat Shark Aura camera and a Triumph Unify Pro32 video transmitter. Line of sight models have no camera and no video transmitter.

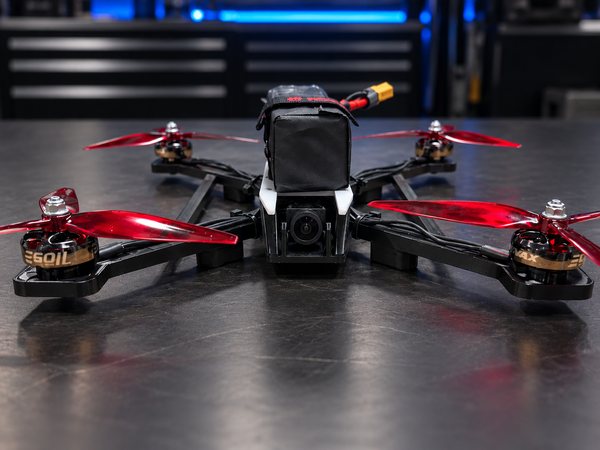

WWX-TGT-7NF
NDAA 7-inch FPV.
| Part number | WWX-TGT-7NF |
|---|---|
| Dimensions (without battery) | 268 x 302 mm, 26 mm tall |
| Frame material | PETG |
| Propellers | Master Airscrew 3MR 7x3.7 |
| Camera | Fat Shark Aura |
| Video transmitter | Triumph Unify Pro32 VTX |
WWX-TGT-7NL
NDAA 7-inch Line of Sight. No camera and no video transmitter.
| Part number | WWX-TGT-7NL |
|---|---|
| Dimensions (without battery) | 268 x 302 mm, 26 mm tall |
| Frame material | PETG |
| Propellers | Master Airscrew 3MR 7x3.7 |
| Camera | None |
| Video transmitter | None |
WWX-TGT-5NF
NDAA 5-inch FPV. Same airframe as the 5-inch FPV Trainer.
| Part number | WWX-TGT-5NF |
|---|---|
| Dimensions (without battery) | 187.4 x 167.4 mm, 26 mm tall |
| Wheelbase | 212.6 mm |
| Maximum speed | 100+ mph |
| Frame material | PETG |
| Camera | Fat Shark Aura |
| Video transmitter | Triumph Unify Pro32 VTX |
WWX-TGT-5NL
NDAA 5-inch Line of Sight. Same airframe as the 5-inch FPV Trainer. No camera and no video transmitter.
| Part number | WWX-TGT-5NL |
|---|---|
| Dimensions (without battery) | 187.4 x 167.4 mm, 26 mm tall |
| Wheelbase | 212.6 mm |
| Maximum speed | 100+ mph |
| Frame material | PETG |
| Camera | None |
| Video transmitter | None |
Pack pricing
| Part number | Model | Pack |
|---|---|---|
| WWX-TGT-7NF | NDAA 7-inch FPV | Pack of 18, $14,994 ($833 per drone*) |
| WWX-TGT-7NL | NDAA 7-inch Line of Sight | Pack of 20, $14,980 ($749 per drone*) |
| WWX-TGT-5NF | NDAA 5-inch FPV | Pack of 18, $14,994 ($833 per drone*) |
| WWX-TGT-5NL | NDAA 5-inch Line of Sight | Pack of 20, $14,980 ($749 per drone*) |
* Price is per drone when bought by the pack. Minimum order is one pack.
Warranty is out-of-box only and is void once flown.
Salvage Parts Program
Send damaged drones and parts back to WetWorx for recycling. We recover every serviceable motor, ESC, flight controller and radio and return them to your range as complete aircraft at reduced cost. Your crews train. We handle the recycling. Batteries are not accepted for return.
| Class | Group 1 |
|---|---|
| Configuration | Quadrotor, printed frame |
| Airframe size | 7-inch propeller class |
| Weight (no battery) | 514 g |
| Weight (with recommended battery) | 993 g |
| Maximum speed | 80+ mph |
| Endurance | 32 min at cruise / 15 min at top speed |
| Battery | 6S 3300 mAh (recommended) |
| Frame material | PETG |
Consumables and resupply
Battery
Cycled out on hours and handling regardless of whether the aircraft is ever struck.
Stack refresh
Full electronics replacement, for the cases where the flight stack does not survive.
Next step
See the specifications
Review the airframe table above, then request a quote.
Need a specific configuration? Our accelerated development phase builds a target to your requirements before production.
